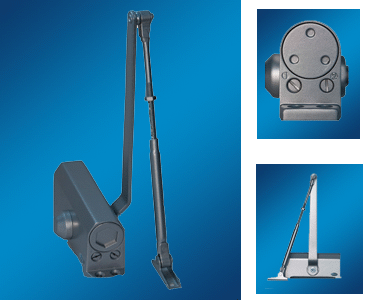

Model: G512
Door Weight: 25-45KG
Door Width: 900MM
Length of Body: 194MM
Width of Body: 46MM
Height of Body: 74.5MM
Horizontal Mounting: 178MM
Vertical Mounting: 19MM
Construction & Technical Details
Constructed with precise aluminum die-cast body
Heat treated steel rack and pinion immersed in high grade oil operate a nest of coils to give a smooth precise action & minimum wear
Piston and spindle have been heat treated for high strength
Stable hydraulic oil for any climatic operation from 0°C-45°C
Anti-ice oil from -35°C-45°C
Function
Available for 3 different power sizes can be used on interior or exterior door
Normal installation angle: pre-closing angle 3°-5°
Adjustable closing & latching speed
Closing speed adjusting valve, range from 180° to 15°
Latching speed adjusting valve, range from 15° to 0°
Special Function
Built-in hold open (optional)
Built-in hold open function can be used to hold door open at angle 85° around. Available for power 1, 2 & 3.
Certificates & Approvals
Manufactured by quality assured ISO9001 factory since 2001
CE, UL certificate
300,000/500,000/1,000,000 cycles test passed
Warranty
G512 door closer is guaranteed for 3-5 years from the date of manufacture against any defect in material or workmanship. Defective product will be replaced by a new unit. This guarantee is void if the product has been subjected of misapplication or abuse.
 |
 |
|
|
|
